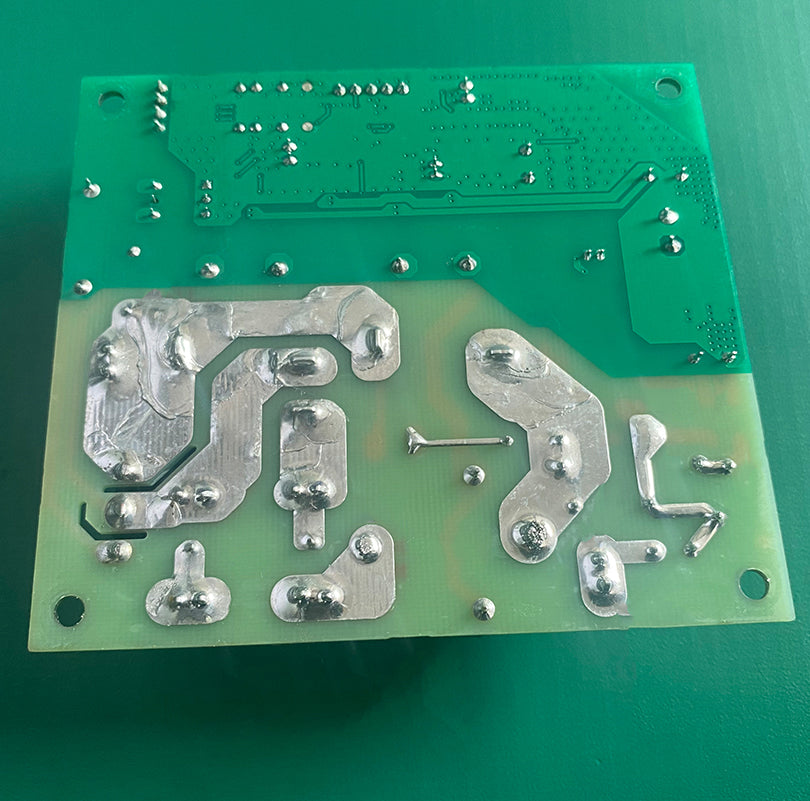

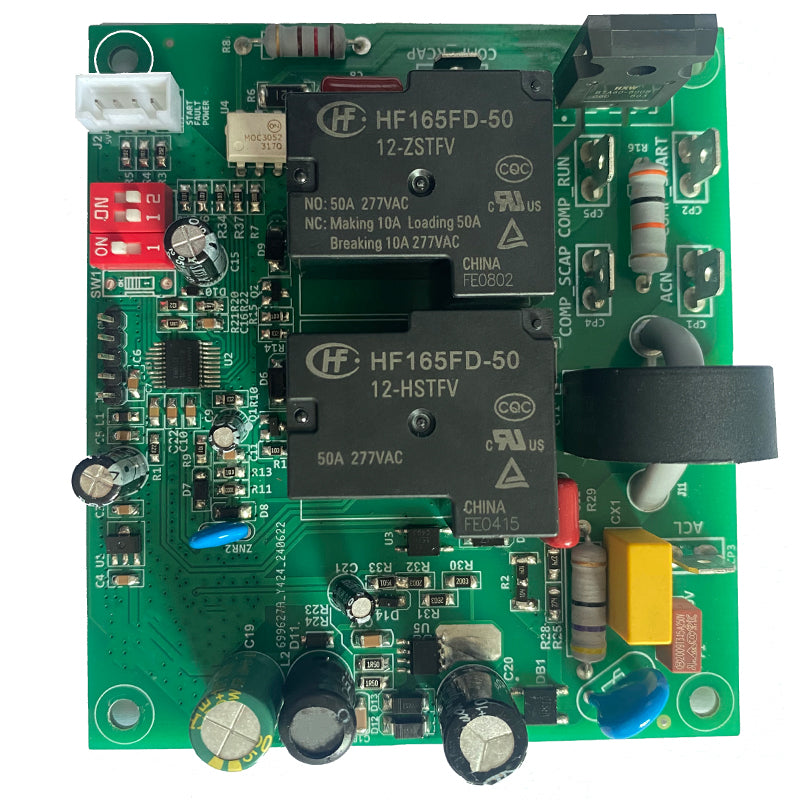

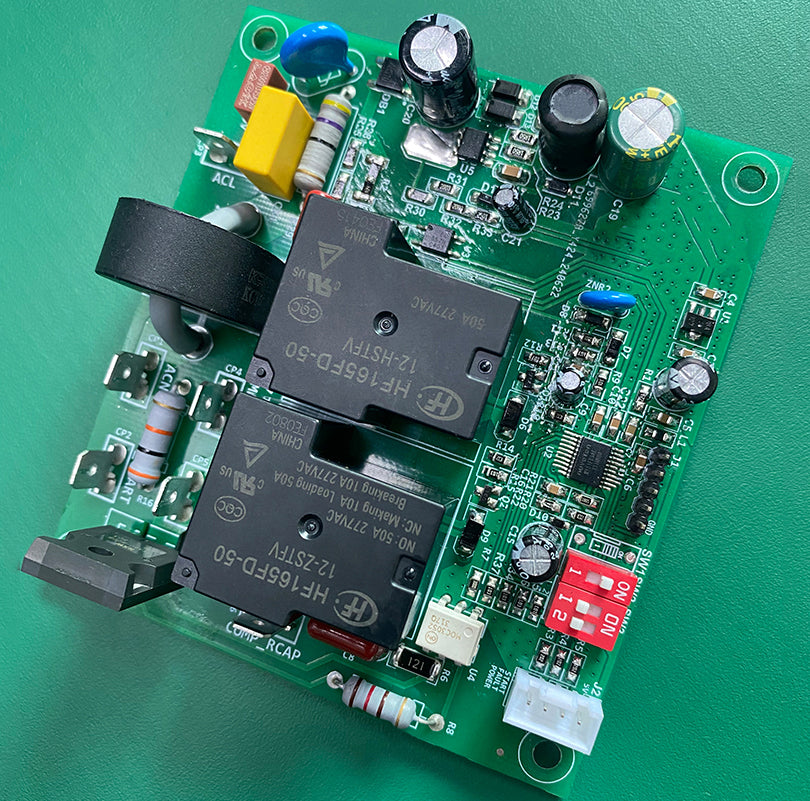

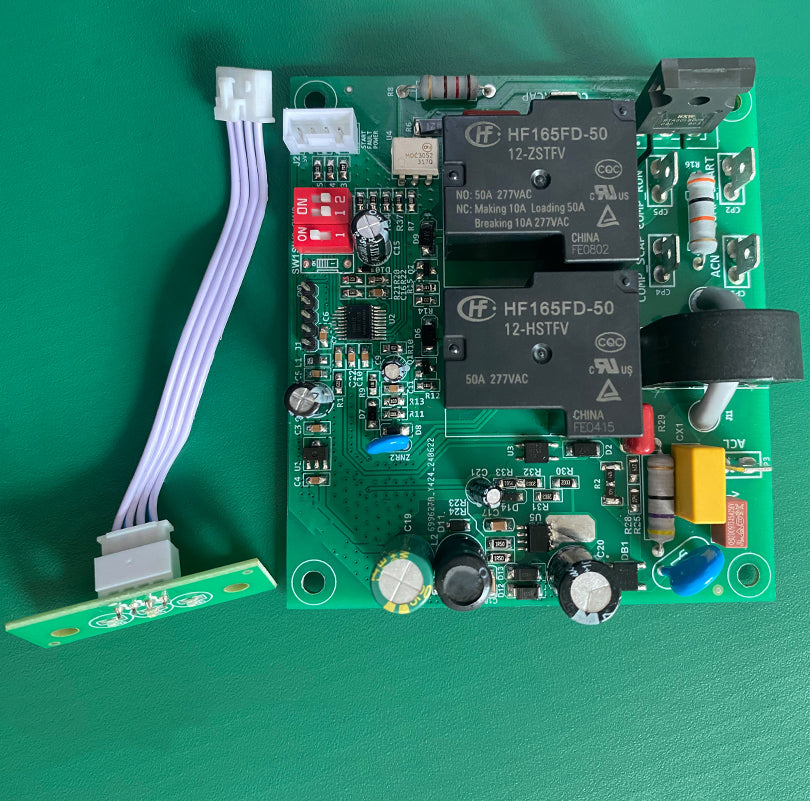

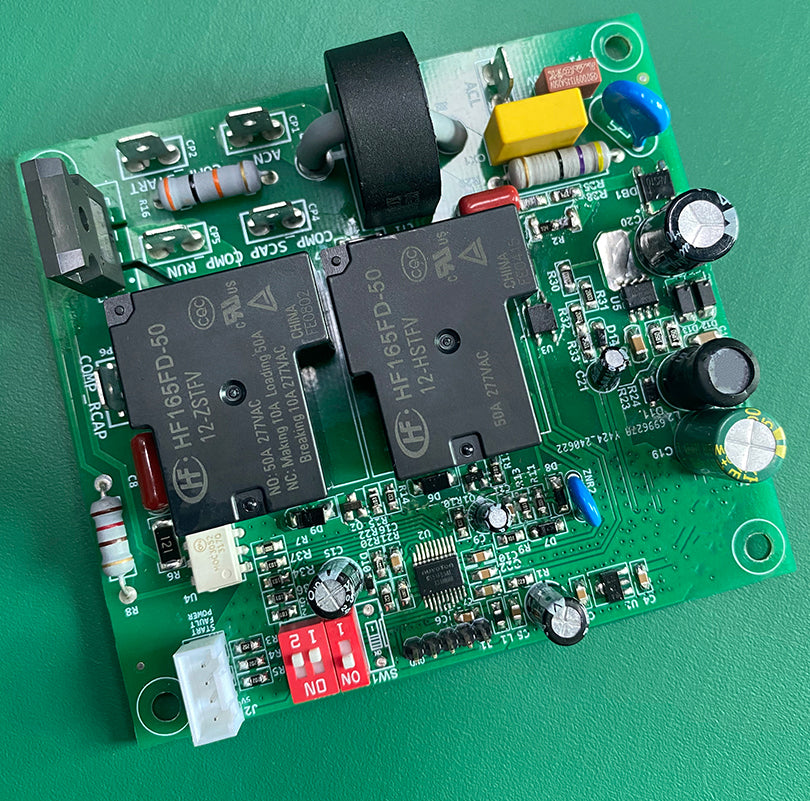

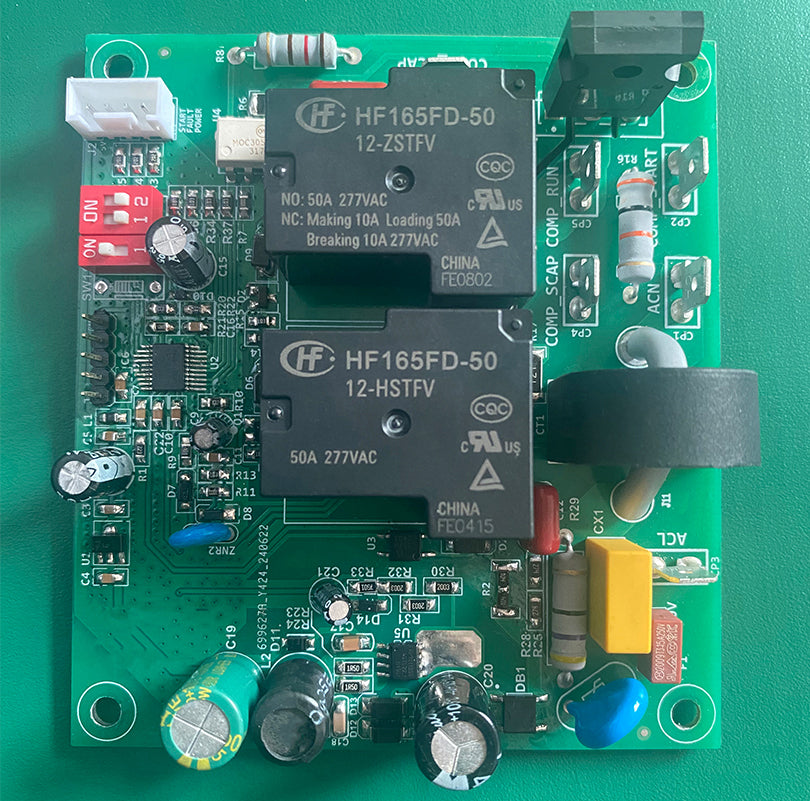

This Air Conditioner Soft Start PCBA is designed for large air conditioners, providing a wide range of input voltage 90VAC-220VAC. 32A or 23A for optimal. Use for commercial, home, or RV air conditioner with our latest design. .
Specification:
P.N.:KINYO Soft Starter PCBA for Air Conditioner
Input voltage:110VAC & 220VAC/50Hz/60Hz
Max FLA : 9A ,16A ,23A ,32A
Single-phase ( 3-phase)
Dimensions:100x90x50mm (3.94"x3.54"x1.97")
Screw hole : 3.18mm in diameter
Working temperature: -40°to 185°F（-40° to 85°C)
Working Humidity: 0～95% RH
The control object: The compressor and installed in control box
Meet UL ETL certification.
Features:
Reduces starting current at startup by up to 70%
Prolong the life of A/C compressor by reducing excessive torque, wear and tear
Reduce loud noises, light flickering, breaker trips
Built-in self-learning algorithm
Over-current monitoring and protection
Over/under voltage monitoring and protection

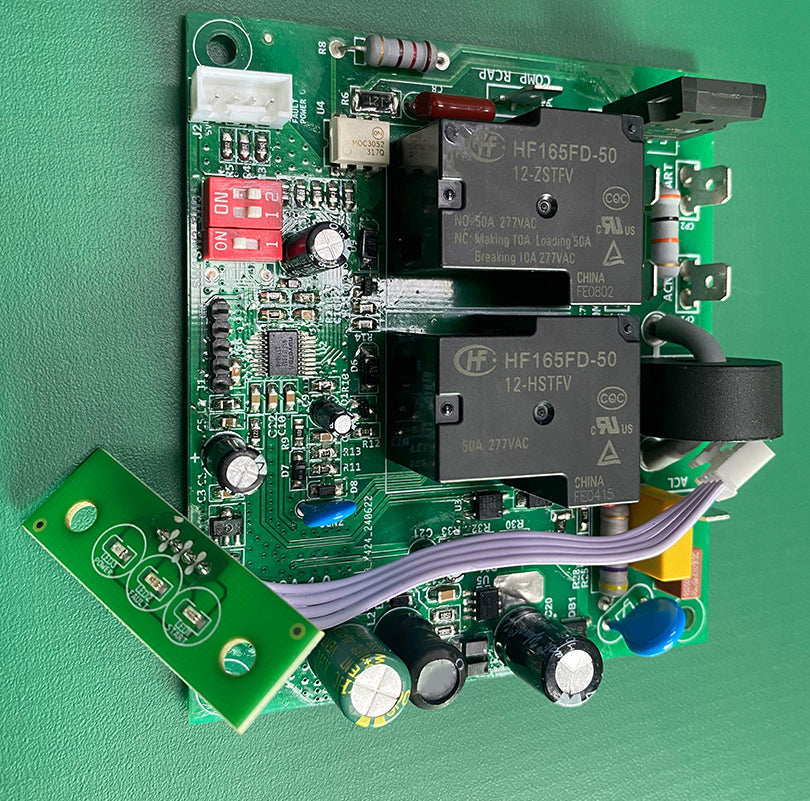

LED fault indicators
LED INDICATORS START:
START=Yellow flashes, for 4-minute wait for restart
RUN=Green
FAULT=Red (flashing)
Appliance:
Electrical, HVAC/R, Marine, Pool&Spa, RV
Overview:
The KINYO Soft Start Control Board is intended for residential, commercial, RV & marine A/C’s.It integrates compressor or motor in-rush current over startup time, thus reducing peak current demand on a power supply source by up to 70%.
It will monitor system health including voltage current, compressor startup and integrity. Utilizing a built-in self learning algorithm the soft start delivers peak in-rush current per application.
KINYO team are special in intelligent control board more than 20years,we are provide fast sample service,support brand your logo and OEM/ODM ,hope we can work together.
